Product Discription
FEATURES
Flexibility and Quality
Using photographic paper, card, laminated material or any print for your pictures, you can produce any book format from 2˝ x 2˝ up to 18˝ x 18˝ and you achieve an edge-to-edge panoramic view on each page. The book cover can be either a standard cover or a digitally printed custom made cover*. In a matter of minutes you can create a beautiful, professional photo album yourself, saving time and adding more profit to your bottom line.
For Photographic Professionals and Digital Printers

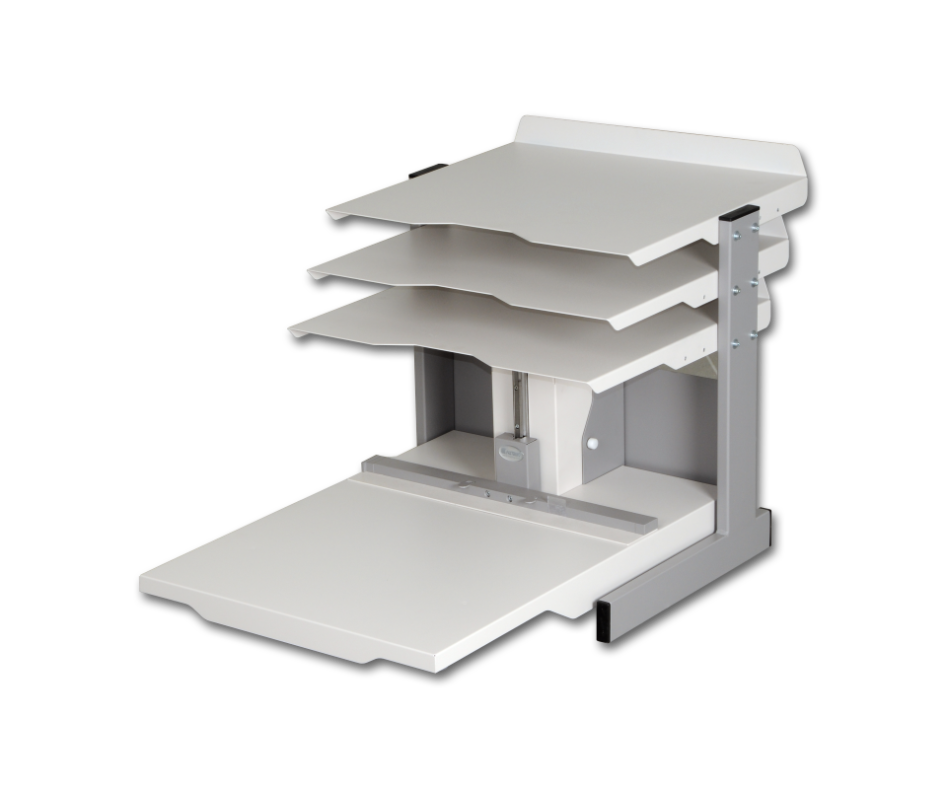

Fastbind FotoMount F46e™ is a superior solution, designed specifically with the photographic studio, photo lab and professional photographer in mind. It also perfectly meets the needs of digital printers, copy shops and on-demand publishers who can offer premium photo albums to their customers.
Easy to Use and Economical
The Fastbind FotoMount™ product line provides all the supplies needed to mount a photo album. With only two types of supplies you can manage all album sizes (up to 18˝ x 18˝ and 3-inch-thick): Fastbind FotoMount mounting sheets™ form the core of the book block and Fastbind FotoMount end sheets™ attach your book block to the cover.
The Revolutionary Mountinglift™ System
1. After printing, crease the pictures in the center.**
2. Bind the creased pictures into a block with Fastbind mounting supplies. Secure the block through the binding process with two magnet clamps, and use the Mountinglift for smooth and accurate positioning. Use a cutter / guillotine to trim the block. ***
3. Place the cover guide on FotoMount F46e and use the cover positioning holders to secure the cover on its place. Mount the trimmed block to the cover by removing the silicon papers from the end sheets. Your deluxe photo album is ready!
* For top quality personalized hard covers, we recommend Fastbind case makers (not included)
** For optimized creasing, we recommend Fastbind creasers (not included)
*** Guillotine not included
Product information as of February 2009 and is subject to change without notice.
| USA | Europe | |
| Max print size (W x L) | 36˝ x 18˝ | 914 x 457 mm |
| Min album size (W x L) | 2˝ x 2˝ | 50 x 50 mm |
| Max album size (W x L) | 18˝ x 18˝ | 457 x 457 mm |
| Max binding thickness | 3” | 80 mm |
| Voltage | 110-120 V | 220-240 V |
| Frequency | 50-60 Hz | 50-60 Hz |
| Max current | 1 A | 1.5 A |
| Machine dimensions with shelf (W x L x H) | 37.8˝ x 22.4˝ x 24.8˝ | 960 x 570 x 630 mm |
| Package 1 dimensions (W x L x H) | 30.5˝ x 18.9˝ x 20.7˝ | 775 x 480 x 525 mm |
| Package 2 dimensions (W x L x H) | 24˝ x 21.5˝ x 26˝ | 610 x 545 x 660 mm |
| Package 3 dimensions (W x L x H) | 22.8˝ x 39.8˝ x 4.7˝ | 578 x 1010 x 120 mm |
| Net/gross weight | 99.2/170 lbs | 45/77 kg |
|
Cover guide with two cover positioning holders and Supply Shelf are included. Product information as of February 2009 and is subject to change without notice. |
||
Features & Specifications
U.S.A
- Binding method-Precision side stapling
- Staple type- Flat clinch; 5000 staples per cassette
- Staple No. 10 for normal stockStaple No. 8 for coated stock
- Standard cover options, Standard and printed hard covers (
- Binding length no constraint with manual use
- Binding thickness Normal stock up to /3/8"; c
- Electrical specifications 110 VAC, 50/60 Hz, 1.3 A Approvals CE
1) One No. 10 cassette included
2) Maximum thickness depends on paper material properties
Product information as of June 2026 and is subject to change without notice.
Using The BooXter Duo Binder
The Fastbind BooXTer Duo allows you to side-staple the book or album content in a clean, regular and consistent way. The stapling process makes it possible to bind most materials, including non-paper ones.
When producing a hard cover book, just add a pair of BooXTer endpapers at the front and back of the content block.
After stapling the content, place the cover on the special positioning unit, to make sure the content is centered in the cover. Peel the endpapers and attach them to the cover.
