The Fastbind Casematic Pro™ is a manual case production system engineered to deliver custom-formatted cases with precision and efficiency. Users design cover specifications and output to compatible digital printers (laser or inkjet technology). Operators make the cases in under 60 seconds per unit, requiring minimal operator effort.
Listed Options:

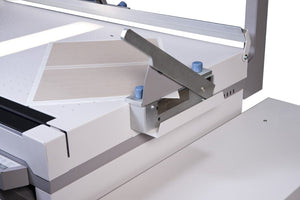

- Corner Cutter
The optional corner cutter allows you to cut the four corners precisely each and every time, no mistakes and no training required!
2. Spacer Set
The Spacer set consists of 8,10,12,14 & 16mm magnetic gap spacers. The gap between the front & back boards and the spine is essential to make a functional hard cover. Different binding methods require different gap spacing.
- Perfect binding can use all sizes
- Staple binding needs 12,14 or 16mm
- Lay Flat mounted album binding needs 14 or16mm
- Box, 3 ring and other binders need no gap spacer.
3. Side /Back Guide
The side and back guide makes registration of solid cover material, like material and leathetts, easier to make in an on-demand finishing environment.
Fastbind Casemaker Series:
- Professional tailor-made hard covers and cases to a maximum size of finished case size of 13" x 13" (H32) and 18" x 18" (H46)
- Includes adjustable edge folding unit with automatic thickness compensation
- Versatile applications (book covers, ring binders, calendars, CD cases...)
- Compatible with Fastbind FotoMount, BooXTer and Hot Melt Binders
USA / EUROPE Specifications
- Max print size (W x L): 29.1 x 14.57" / 40 x 370 mm
- Max finished case size, opened (W x L): 27.5 x 13" / 700 x 330 mm
- Max finished case size, closed (W x L x H): 13 x 13 x 1.57" / 330 x 330 x 40 mm
- Max folding length: 27.5" / 700 mm
- Thickness of cardboard: Up to 0.2" / Up to 5 mm
- Voltage: 110/115 V / 220–240V
- Frequency: 50-60 A / 50-60 Hz
- Max Current: 1 A / 1 A
Machine Dimensions (W x D x H):
Box Dimensions (W x D x H):
Net/Gross Weight:
